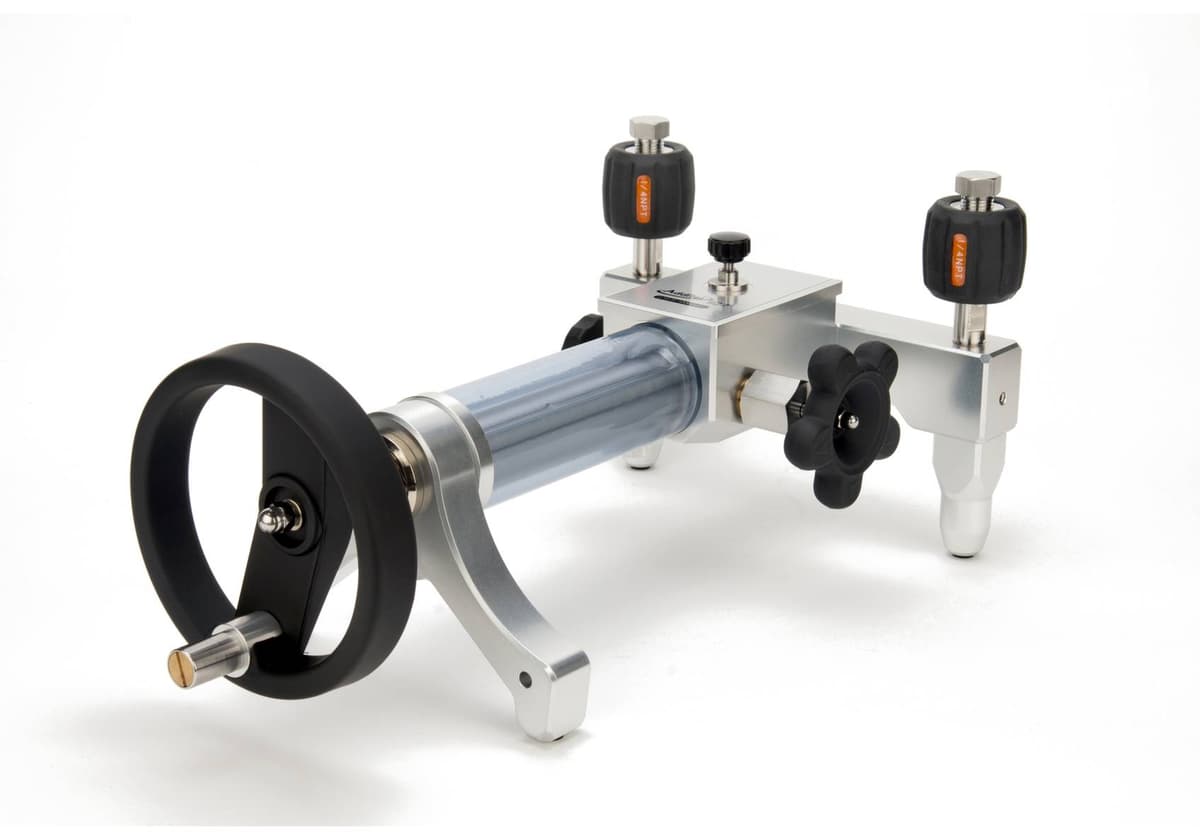

Additel 927 / 927W Hydraulic Pressure Test Pump
Hydraulic comparison test pump, 85% vacuum to 10,000 psi (10000 psi / 700 bar). Patented screw press with no check valve. 7 lb, 245 ml reservoir. ADT927 ships for oil; order ADT927W for deionized water. Two hand-tight quick connectors. Pumps from $3,064.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Additel 927 is a hand-operated hydraulic comparison test pump for generating 85% vacuum to 10,000 psi (700 bar) in the field or laboratory. A patented screw press — with no check valve (non-returning valve) — lets you raise and lower pressure smoothly and avoids the leakage typical of most hand pumps, so maintenance stays minimal. The pump weighs 7 lb (3.2 kg) and has a 245 ml (15 in³) reservoir.
ADT927 ships with oil as the default media (250 ml of mineral oil is included). Order ADT927W when the media must be deionized water. Additel notes that stability is best with oil and that performance may decrease with water. Two hand-tight quick connectors take the reference gauge and the device under test — no PTFE tape or wrenches. Port choices are 1/4 NPT, 1/2 NPT, 1/4 BSP, 1/2 BSP, or M20×1.5 female. SET models add the 9904-927 carrying case for the pump and two gauges.
Pumps from $3,064 (ADT927). ADT927W from $3,237. A maintenance kit (ADT927-MK) is listed with the variants.
Specifications
| Pressure | |
| Generated range | 85% vacuum to 10,000 psi (700 bar) positive pressure |
| Media | Oil (ADT927 default) or deionized water (order ADT927W). Stability is best with oil; performance may decrease with water |
| Reservoir | 245 ml (15 in³) |
| Pump | Patented screw press; no check valve (non-returning valve) |
| Piston volume | Low-pressure 1.2 in³ (19 ml); high-pressure 0.05 in³ (0.9 ml) |
| Connections | |
| Quick connectors | Two hand-tight connectors for reference and test gauge — no PTFE tape or wrenches |
| Port types | 1/4 NPT, 1/2 NPT, 1/4 BSP, 1/2 BSP, or M20×1.5 female |
| General | |
| Weight | 7 lb (3.2 kg) |
| Dimensions | Height 5.31 in (135 mm); base 11.42 × 7.80 in (290 × 198 mm) |
| Materials | Ram/adapters SS; body SS and aluminum; seals Buna-N, PTFE, copper alloy |
| Included | Mineral oil 250 ml (not when water media is requested); 20 O-rings. SET models add 9904-927 carrying case |
| Models | ADT927 (oil) and ADT927W (water); optional -SET carrying case; ADT927-MK maintenance kit |
| Warranty | 1 year |
| Family | |
| vs Additel 920 | 920 is pneumatic (air), 95% vacuum to 3,000 psi (200 bar). 927 is hydraulic to 10,000 psi |
| General | |
| Starting price | Pumps from $3,064 (ADT927); ADT927W from $3,237 |
Videos
Documents
Ordering information
21 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| ADT927-B | Hydr. Pressure Generator,..-860 mbar to +700 bar (-12.5 psi to 10,000 psi), 1/4" BSP | $3,064.00 | |
| ADT927-B2 | Hydr. Pressure Generator,..-860 mbar to +700 bar (-12.5 psi to 10,000 psi), 1/2" BSP | $3,064.00 | |
| ADT927-B2-SET | Hydr. Pressure Generator,..-860 mbar to +700 bar (-12.5 psi to 10,000 psi), 1/2" BSP with carrying case | $3,587.00 | |
| ADT927-B-SET | Hydr. Pressure Generator,..-860 mbar to +700 bar (-12.5 psi to 10,000 psi), 1/4" BSP with carrying case | $3,587.00 | |
| ADT927-M | Hydraulic Pressure Test Generator..-12.5 to 10,000 psi (700 bar), M20X1.5 female | $3,064.00 | |
| ADT927-MK | Maintenance kit for ADT927 Generator | $51.00 | |
| ADT927-M-SET | Hydraulic Pressure Test Generator..-12.5 to 10,000 psi (700 bar), M20X1.5 female with carrying case | $3,587.00 | |
| ADT927-N | Hydraulic Pressure Test Generator..-12.5 to 10,000 psi (700 bar), 1/4NPT, F | $3,064.00 | |
| ADT927-N2 | Hydraulic Pressure Test Generator..-12.5 to 10,000 psi (700 bar), 1/2 NPT, F | $3,064.00 | |
| ADT927-N2-SET | Hydraulic Pressure Test Generator..-12.5 to 10,000 psi (700 bar), 1/2 NPT, F with carrying case | $3,587.00 | |
| ADT927-N-SET | Hydraulic Pressure Test Generator..-12.5 to 10,000 psi (700 bar), 1/4NPT, F with carrying case | $3,587.00 | |
| ADT927W-B | Hydraulic Pressure Test Pump, for Use with Water, to +700 bar (10,000 psi), 1/4" BSP | $3,237.00 | |
| ADT927W-B2 | Hydraulic Pressure Test Pump, for Use with Water, to +700 bar (10,000 psi), 1/2" BSP | $3,237.00 | |
| ADT927W-B2-SET | Hydraulic Pressure Test Pump, for Use with Water, to +700 bar (10,000 psi), 1/2" BSP with carrying case | $3,792.00 | |
| ADT927W-B-SET | Hydraulic Pressure Test Pump, for Use with Water, to +700 bar (10,000 psi), 1/4" BSP with carrying case | $3,792.00 | |
| ADT927W-M | Hydraulic Pressure Test Pump, for Use with Water, to +700 bar (10,000 psi), M20X1.5 F | $3,237.00 | |
| ADT927W-M-SET | Hydraulic Pressure Test Pump, for Use with Water, to +700 bar (10,000 psi), M20X1.5 F with carrying case | $3,792.00 | |
| ADT927W-N | Hydraulic Pressure Test Pump, for Use with Water, to +700 bar (10,000 psi), 1/4NPT, F | $3,237.00 | |
| ADT927W-N2 | Hydraulic Pressure Test Pump, for Use with Water, to +700 bar (10,000 psi), 1/2 NPT, F | $3,237.00 | |
| ADT927W-N2-SET | Hydraulic Pressure Test Pump, for Use with Water, to +700 bar (10,000 psi), 1/2 NPT, F with carrying case | $3,792.00 | |
| ADT927W-N-SET | Hydraulic Pressure Test Pump, for Use with Water, to +700 bar (10,000 psi), 1/4NPT, F with carrying case | $3,792.00 |
