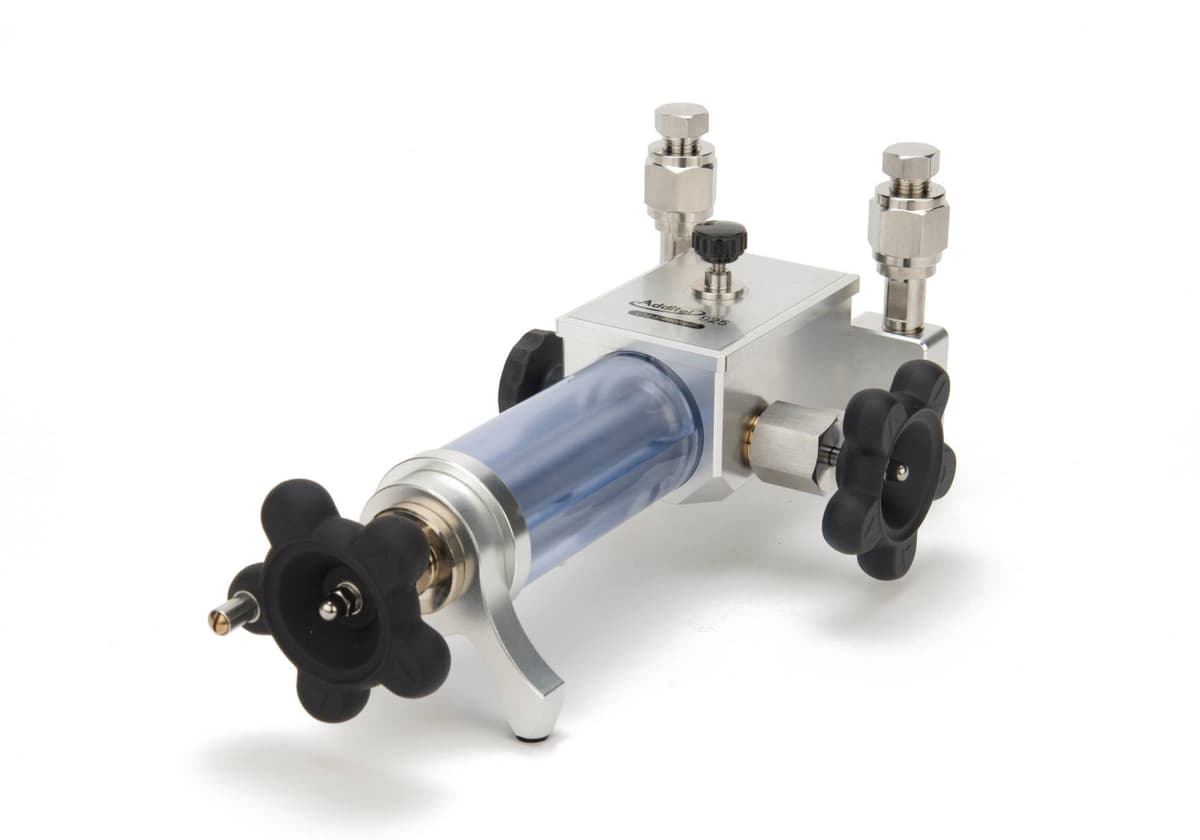

Additel 925 / 925W Handheld Hydraulic Pressure Test Pump
Handheld hydraulic comparison test pump, 85% vacuum to 6,000 psi (400 bar). Patented screw press with no check valve. 3.7 lb, 200 ml reservoir. ADT925 ships for oil; order ADT925W for deionized water. Two hand-tight quick connectors. Pumps from $2,331.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Additel 925 is a hand-operated hydraulic comparison test pump for generating 85% vacuum to 6,000 psi (400 bar) in the field or laboratory. A patented screw press — with no check valve (non-returning valve) — lets you raise and lower pressure smoothly and avoids the leakage typical of most hand pumps, so maintenance stays minimal. The pump weighs 3.7 lb (1.7 kg) and has a 200 ml (12.2 in³) reservoir.
ADT925 ships with oil as the default media (250 ml of mineral oil is included). Order ADT925W when the media must be deionized water. Additel notes that stability is best with oil and that performance may decrease with water. Two hand-tight quick connectors take the reference gauge and the device under test — no PTFE tape or wrenches. Port choices are 1/4 NPT, 1/2 NPT, 1/4 BSP, 1/2 BSP, or M20×1.5 female. SET models add the 9901-925 carrying case for the pump and two gauges.
Compared with the Additel 920 pneumatic high-pressure pump (95% vacuum to 3,000 psi / 200 bar, air), the 925 is hydraulic and reaches 6,000 psi.
Pumps from $2,331 (ADT925). ADT925W from $2,466. A maintenance kit (ADT925-MK) is listed with the variants.
Specifications
| Pressure | |
| Generated range | 85% vacuum to 6,000 psi (400 bar) positive pressure |
| Media | Oil (ADT925 default) or deionized water (order ADT925W). Stability is best with oil; performance may decrease with water |
| Reservoir | 200 ml (12.2 in³) |
| Pump | Patented screw press; no check valve (non-returning valve) |
| Piston volume | Low-pressure 1.1 in³ (18 ml); high-pressure 0.05 in³ (0.9 ml) |
| Connections | |
| Quick connectors | Two hand-tight connectors for reference and test gauge — no PTFE tape or wrenches |
| Port types | 1/4 NPT, 1/2 NPT, 1/4 BSP, 1/2 BSP, or M20×1.5 female |
| General | |
| Weight | 3.7 lb (1.7 kg) |
| Dimensions | Height 4.72 in (120 mm); base 9.84 × 5.51 in (250 × 140 mm) |
| Materials | Ram/adapters SS; body SS and aluminum; seals Buna-N, PTFE, copper alloy |
| Included | Mineral oil 250 ml (not when water media is requested); 20 O-rings. SET models add 9901-925 carrying case |
| Models | ADT925 (oil) and ADT925W (water); optional -SET carrying case; ADT925-MK maintenance kit |
| Warranty | 1 year |
| Family | |
| vs Additel 920 | 920 is pneumatic (air), 95% vacuum to 3,000 psi (200 bar). 925 is hydraulic to 6,000 psi |
| General | |
| Starting price | Pumps from $2,331 (ADT925); ADT925W from $2,466 |
Videos
Documents
Ordering information
21 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| ADT925-B | Handheld Hydraulic Pressure Test Generator, 6000 psi, 1/4 BSP F | $2,331.00 | |
| ADT925-B2 | Handheld Hydraulic Pressure Test Generator, 6000 psi, 1/2 BSP F | $2,331.00 | |
| ADT925-B2-SET | Handheld Hydraulic Pressure Test Generator, 6000 psi, 1/2 BSP F with carrying case | $2,730.00 | |
| ADT925-B-SET | Handheld Hydraulic Pressure Test Generator, 6000 psi, 1/4 BSP F with carrying case | $2,730.00 | |
| ADT925-M | Handheld Hydraulic Pressure Test Generator,..6000 psi, M20X1.5 F | $2,331.00 | |
| ADT925-MK | Maintenance kit for ADT925 Generator | $51.00 | |
| ADT925-M-SET | Handheld Hydraulic Pressure Test Generator,..6000 psi, M20X1.5 F with carrying case | $2,730.00 | |
| ADT925-N | Handheld Hydraulic Pressure Test Generator,..6000 psi, 1/4 NPT | $2,331.00 | |
| ADT925-N2 | Handheld Hydraulic Pressure Test Generator,..6000 psi, 1/2 NPT | $2,331.00 | |
| ADT925-N2-SET | Handheld Hydraulic Pressure Test Generator,..6000 psi, 1/2 NPT with carrying case | $2,730.00 | |
| ADT925-N-SET | Handheld Hydraulic Pressure Test Generator,..6000 psi, 1/4 NPT with carrying case | $2,730.00 | |
| ADT925W-B | Handheld Hydraulic Pressure Test Pump, for Use with Water, 6000 psi, 1/4BSP F | $2,466.00 | |
| ADT925W-B2 | Handheld Hydraulic Pressure Test Pump, for Use with Water, 6000 psi, 1/2BSP F | $2,466.00 | |
| ADT925W-B2-SET | Handheld Hydraulic Pressure Test Pump, for Use with Water, 6000 psi, 1/2BSP F with carrying case | $2,886.00 | |
| ADT925W-B-SET | Handheld Hydraulic Pressure Test Pump, for Use with Water, 6000 psi, 1/4BSP F with carrying case | $2,886.00 | |
| ADT925W-M | Handheld Hydraulic Pressure Test Pump, for Use with Water, 6000 psi, M20X1.5 F | $2,466.00 | |
| ADT925W-M-SET | Handheld Hydraulic Pressure Test Pump, for Use with Water, 6000 psi, M20X1.5 F with carrying case | $2,886.00 | |
| ADT925W-N | Handheld Hydraulic Pressure Test Pump, for Use with Water, 6000 psi, 1/4NPT F | $2,466.00 | |
| ADT925W-N2 | Handheld Hydraulic Pressure Test Pump, for Use with Water, 6000 psi, 1/2 NPTF | $2,466.00 | |
| ADT925W-N2-SET | Handheld Hydraulic Pressure Test Pump, for Use with Water, 6000 psi, 1/2 NPTF with carrying case | $2,886.00 | |
| ADT925W-N-SET | Handheld Hydraulic Pressure Test Pump, for Use with Water, 6000 psi, 1/4NPT F with carrying case | $2,886.00 |
